Legal Land Converter for Android User Manual

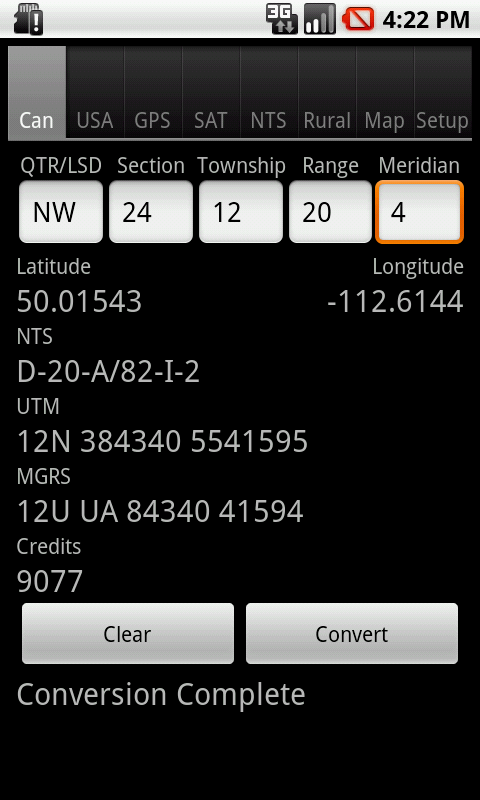

Android: Converting Canadian Legal Land Description to Latitude and Longitude

Convert Legal Land Description to Latitude and Longitude

Valid Quarters
      An LSD        1 - 16
      A Quarter     NW NE SW SE
      A Half        N S E W
      Full Section  [leave blank]

Valid Sections are  1 -  36
Valid Townships are 1 - 127
Valid Ranges are    1 -  34
Valid Meridians are 0 -   7

A township may not have all the sections,

Ranges may not go up to 34 for each meridian
at higher latitudes, but will never go outside this range.

Meridian 0 is used for E1 or East of the First Meridian

Meridian 1 is W1
Meridian 2 is W2
Meridian 3 is W3
Meridian 4 is W4
Meridian 5 is W5
Meridian 6 is W6
Meridian 7 is W7

The Clear Button will clear all the data entry fields.

Convert USA Public Land Survey System to Latitude and Longitude

Valid Quarters

      A Quarter     NW NE SW SE
      A Half        N S E W
      Full Section  [leave blank]

All the other parameters have valid ranges
depending upon the meridian.

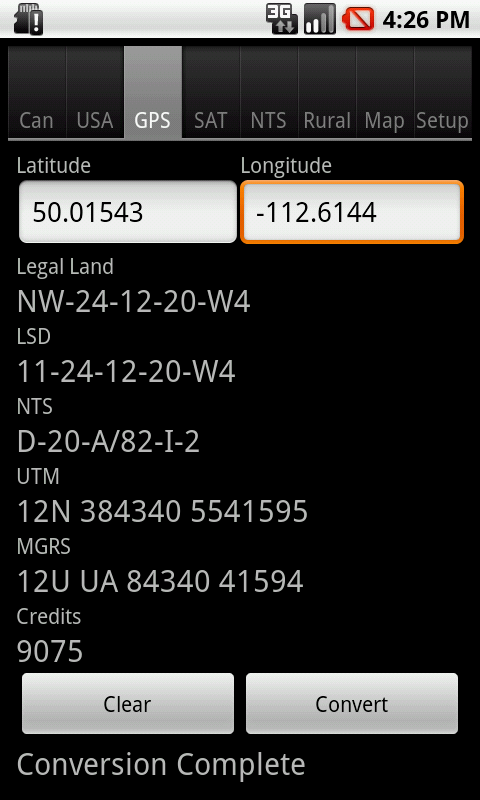

Convert Latitude and Longitude to Canadian Legal Land Description

This function will automatically decide if the coordinates
are Canadian or American and do the appropriate conversion.

Coordinates can be entered in 3 formats at any time,
regardless of the settings on the 'Setup' screen.

   Degrees
     eg: 50.01543 -112.6144

   Degrees and Minutes
     eg: 50:0.9258  -112:36.86406

   Degrees Minutes and Seconds
     eg: 50:0:55.548  -112:36:51.84

Note that North American Longitudes are proceeded with a negative sign

Note that a colon ':' is the Standard Method to seperate
  Degrees, Minutes and Seconds on the Android

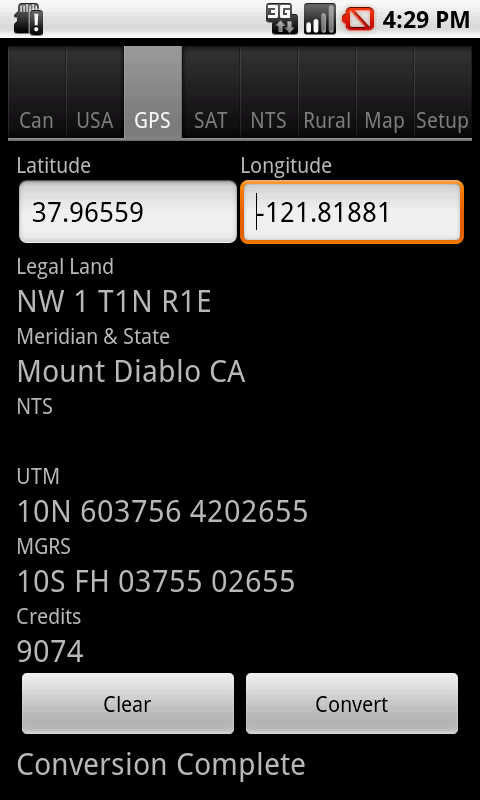

Android: Convert Latitude and Longitude to US Legal Land Description

Convert Latitude and Longitude to US Public Land Survey System

This function will automatically decide if the coordinates
are Canadian or American and do the appropriate conversion.

Coordinates can be entered in 3 formats at any time,
regardless of the settings on the 'Setup' screen.

   Degrees
     eg: 37.96559  -121.81881

   Degrees and Minutes
     eg: 37:57.9354  -121:49.1286

   Degrees Minutes and Seconds
     eg: 37:57:56.1276  -121:49:7.7232

Note that North American Longitudes are proceeded with a negative sign

Note that a colon ':' is the Standard Method to seperate
  Degrees, Minutes and Seconds on the Android

Android: Get latitude and longitude from GPS satellite and convert to Canadian Legal Land Description

Get Current GPS Coordinates from Satellite and Convert to Canadian Legal Land Desciption

This function will retrieve your current Latitude and Longitude
from the GPS satellite network and convert it to
Legal Land Description, LSD, NTS and UTM / MGRS / USNG coordinates

  Press the Acquire button to begin receiving GPS signals.

  This Acquire button will change to 'Stop' button.

  Pressing the 'Stop' button will stop recieving GPS signals.

  If you let this function run, it will receive 24 sets of coordinates
    and then stop automatically.

  The most accurate coordinates are stored for conversion.

  Press the Convert Button to run the conversions.

This function will automatically decide if the coordinates
are Canadian or American and do the appropriate conversions.

Android: Get latitude and longitude from GPS satellite and convert to USA Public Land Survey System

Get Current GPS Coordinates from Satellite and Convert to USA Public Land Survey System

This function will receive your current Latitude and Longitude
from the GPS satellite network and convert it to
Public Land Survey System and UTM/MGRS/USNG coordinates.

  Press the Acquire button to begin retrieving GPS signals.

  This Acquire button will change to 'Stop' button.

  Pressing the 'Stop' button will stop recieving GPS signals.

  If you let this function run, it will receive 24 sets of coordinates
    and then stop automatically.

  The most accurate coordinates are stored for conversion.

  Press the Convert Button to run the conversions.

This function will automatically decide if the coordinates
are Canadian or American and do the appropriate conversion.

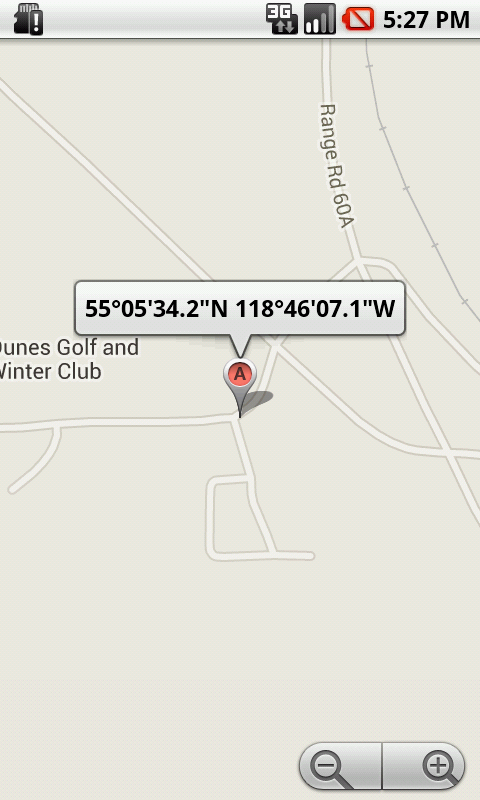

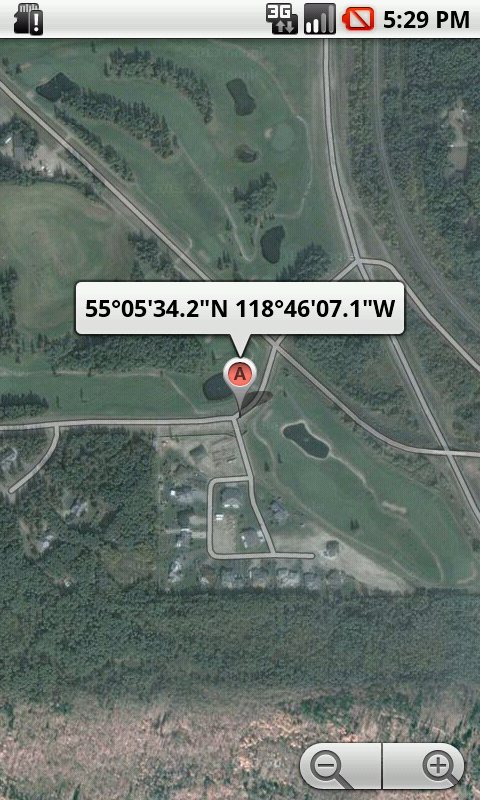

Show Map of Current Coordinates

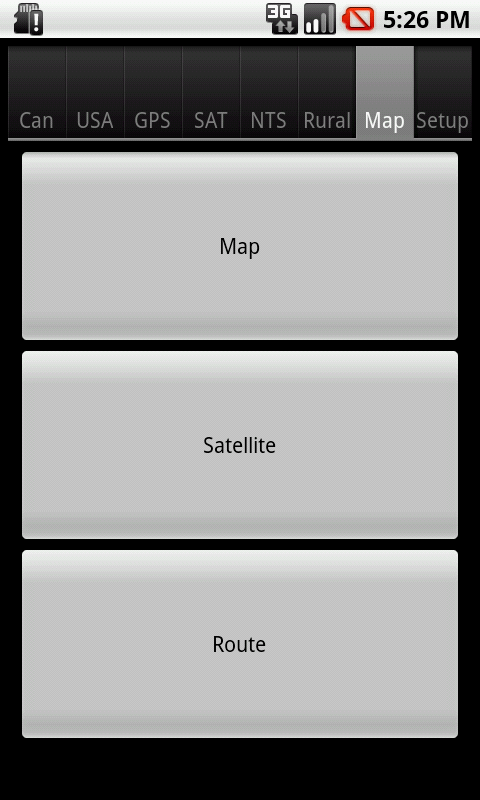

Tap Map to show current coordinates	Tap Menu Button for View Menu	Map in Satellite View

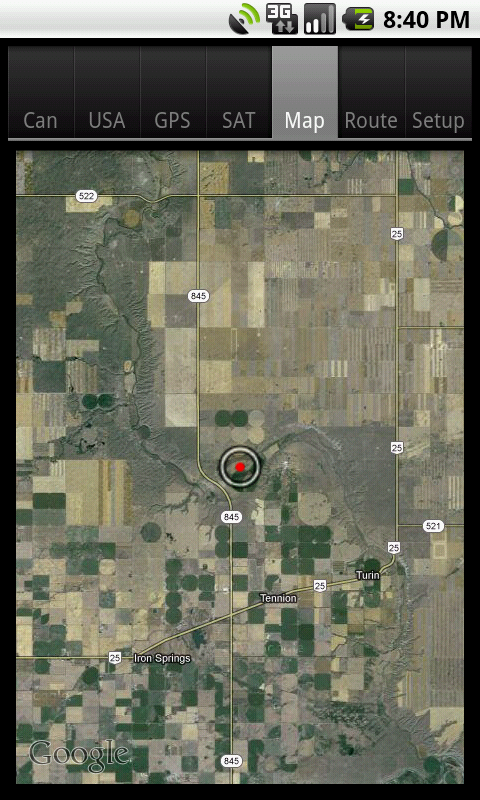

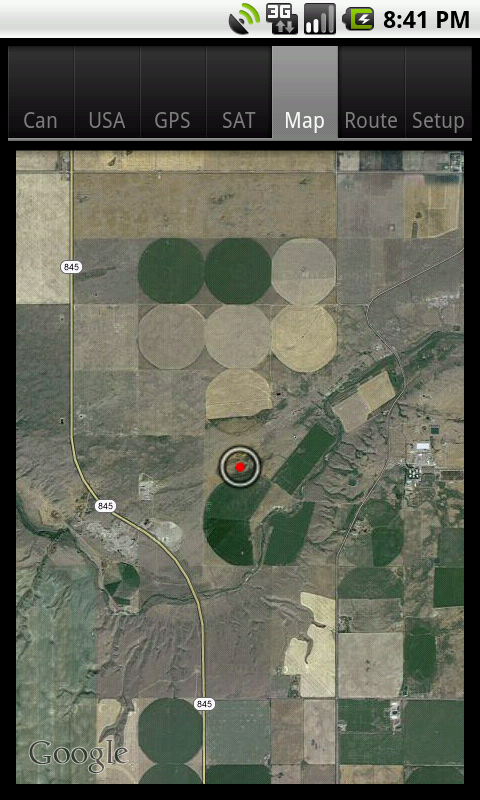

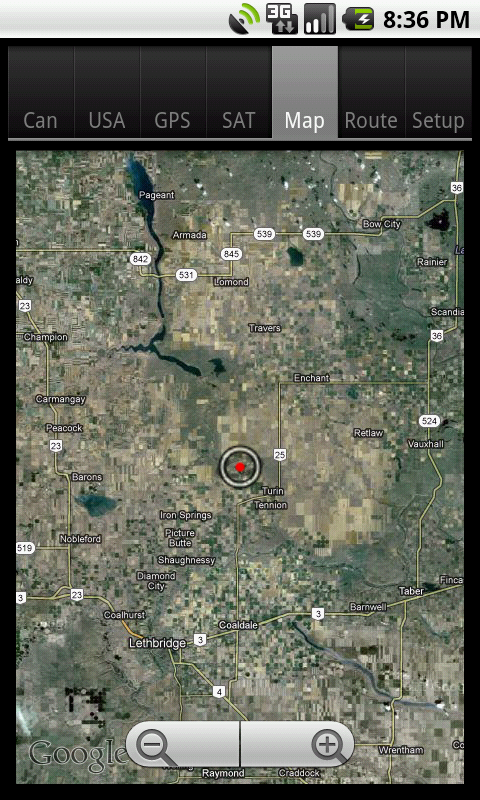

Tap screen for Zoom Bar	Medium Zoom	Maximum Zoom

Show Route to Legal Land Description

Android: Enter Legal Land Description of Destination

Hit Clear
Enter Destination
Hit Convert
Tap Route

Select Maps

Map of Route

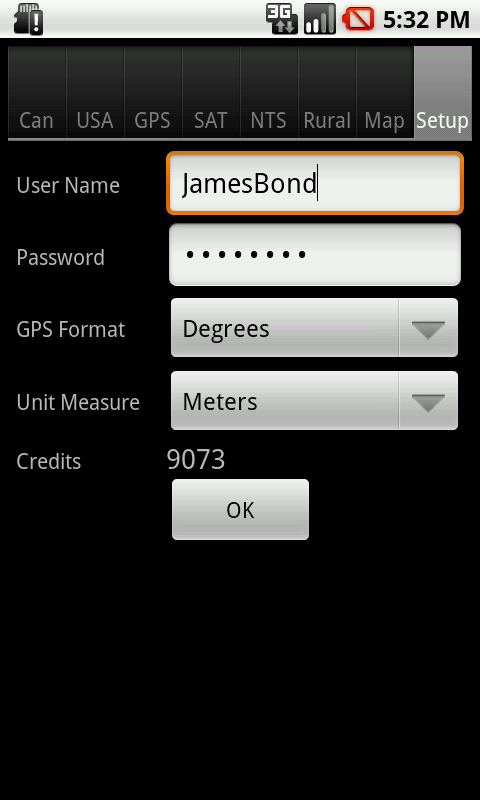

Android: Setup screen for Legal Land Converter

Setup Tab


   Username     - The Username for your account

   Password     - The Password for your account

   Unit Measure - How Alitidude and Accurracy are displayed

                     Feet
                     Meters

   GPS Format   - How Latitude and Longitude are displayed

                     Degrees
                       eg: 50.01543 -112.6144

                     Degrees and Minutes
                       eg: 50:0.9258  -112:36.86406

                     Degrees Minutes and Seconds
                       eg: 50:0:55.548  -112:36:51.84

   UTM Format   - How UTM cooridinates are displayed

                     UTM
                       eg: 12U   384323   5540791

                     MGRS / USNG
                       eg: 12UUA8432340791


   OK Button    - Checks Username and Password
